Atlas Series
External Halyard Ground Set Cone Tapered Aluminum Flagpole
Description
The Atlas Series from Eder Flag Manufacturing Company features cone-tapered ground-set aluminum flagpoles precision-fabricated from new 6063-T6 tubing using advanced manufacturing processes. The conical design tapers approximately 1 inch in every 5-1/2 feet, ensuring structural strength and aesthetic appeal.
All anodized flagpole shafts undergo a meticulous polishing process with fine grain aluminum oxide cloth, resulting in a high-quality, deep satin lustre finish. This finish is considered the pinnacle of architectural finishes for aluminum flagpoles, offering an elegant, maintenance-free appearance. Various standard anodized finishes are available to suit different aesthetic preferences.

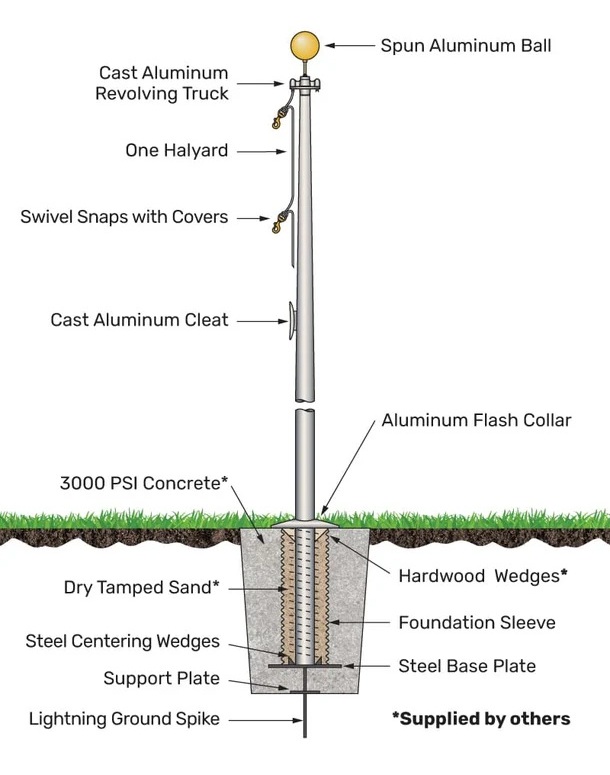

Standard Accessories
- Gold anodized aluminum ball ornament
- Cast aluminum revolving truck with pulley (ECSA20 & ECSA25 poles have a stationary truck as standard)
- Solid braided polypropylene halyard
- Swivel flag snaps w/vinyl snap covers
- Cast aluminum cleat with mounting screws
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
The Atlas Series flagpoles combine precision craftsmanship with a sophisticated finish, making them an ideal choice for enhancing architectural landscapes with enduring beauty and functionality.
Atlas Series
| Model | Mtg. Hgt. | Butt Dia. | Wall Thickness | Pole Sections | Std. Flag Size | Max Wind Speed w/Nylon Flag | Max Wind Speed No Flag | Price (Satin) | View |
|---|---|---|---|---|---|---|---|---|---|
| ECSA20 | 20' | 4" | .125" | 1 | 3' x 5' | 110 mph | 152 mph | $1,314 | View |
| ECSA25 | 25' | 4" | .125" | 1 | 4' x 6' | 88 mph | 113 mph | $1,390 | View |
| ECXA25 | 25' | 5" | .156" | 1 | 4' x 6' | 120 mph | 183 mph | $2,023 | View |
| ECXA30 | 30' | 5" | .156" | 2 | 5' x 8' | 95 mph | 119 mph | $2,278 | View |
| ECL30 | 30' | 5" | .188" | 1 | 5' x 8' | 100 mph | 131 mph | $2,431 | View |
| ECA30 | 30' | 6" | .156" | 2 | 5' x 8' | 115 mph | 184 mph | $2,797 | View |
| ECSA35 | 35' | 5" | .188" | 1 | 6' x 10' | 86 mph | 104 mph | $2,533 | View |
| ECA35 | 35' | 7" | .156" | 2 | 6' x 10' | 114 mph | 175 mph | $3,324 | View |
| ECA40 | 40' | 8" | .156" | 2 | 8' x 12' | 110 mph | 171 mph | $4,871 | View |
| ECXA60 | 60' | 10" | .250" | 3 | 12' x 18' | 106 mph | 150 mph | $11,118 | View |
