Architectural Series
External Halyard Ground Set Cone Tapered Aluminum Flagpole
Description
The Architectural Series from Eder Flag Manufacturing Company features cone-tapered ground-set aluminum flagpoles meticulously crafted from new 6063-T6 tubing using advanced manufacturing techniques. The conical shape tapers approximately 1 inch in every 5-1/2 feet, ensuring structural integrity and aesthetic appeal.

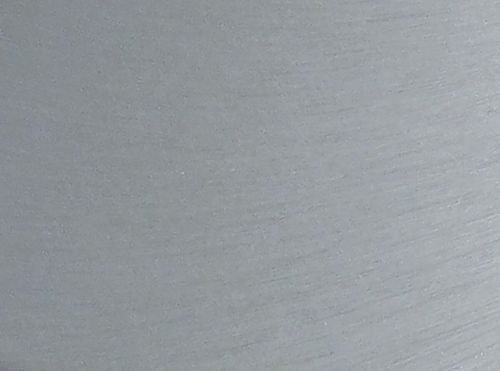

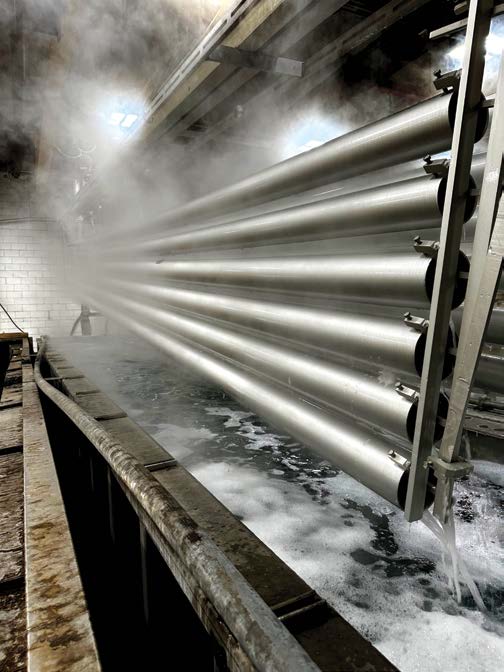

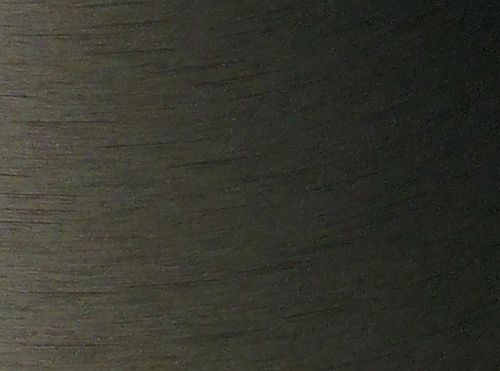

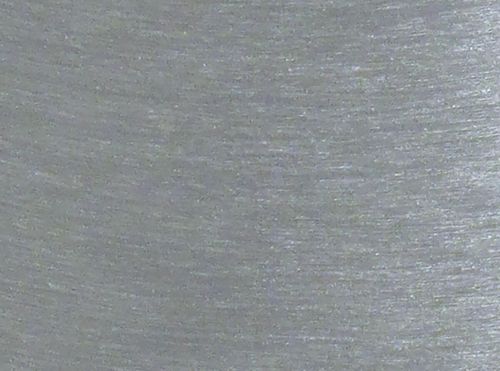

All anodized flagpole shafts undergo a meticulous polishing process with fine grain aluminum oxide cloth, resulting in a high-quality, deep satin lustre finish. This finish not only enhances the appearance but also provides a durable, maintenance-free surface. Standard anodized finishes are available in various options, reflecting the pinnacle of architectural standards for aluminum flagpoles.

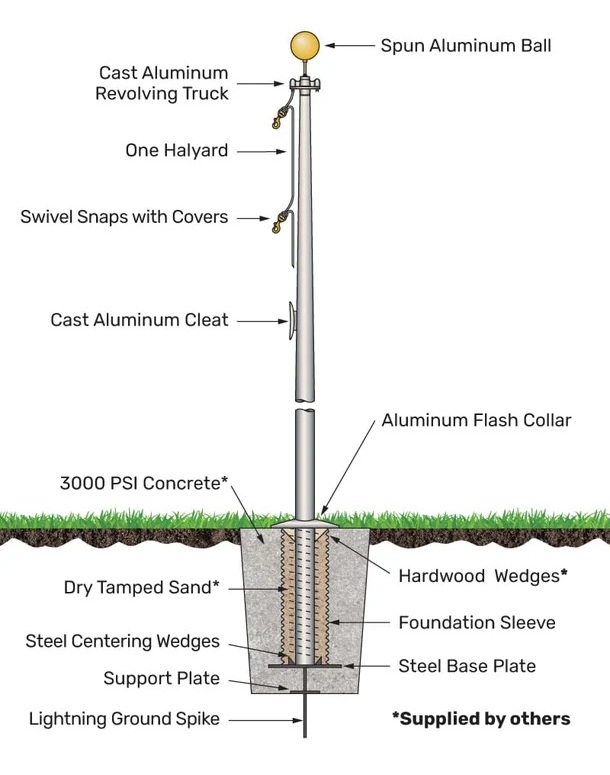

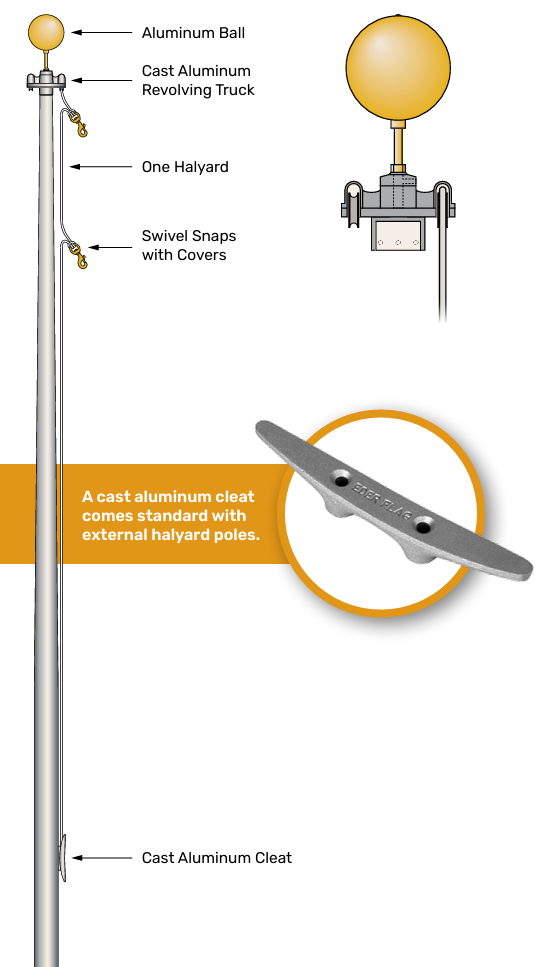

Standard Accessories
- Gold anodized aluminum ball ornament
- Cast aluminum revolving truck w/pulley
- Solid braided polypropylene halyard
- Swivel flag snaps w/vinyl snap covers
- Cast aluminum cleat with mounting screws
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
The Architectural Series flagpoles combine precision engineering with elegant design, making them an ideal choice for enhancing architectural landscapes with enduring beauty and functionality.
Architectural Series
| Model | Mtg. Hgt. | Butt Dia. | Wall Thickness | Pole Sections | Std. Flag Size | Max Wind Speed w/Nylon Flag | Max Wind Speed No Flag | Price (Satin) | View |
|---|---|---|---|---|---|---|---|---|---|
| EC20 | 20' | 5" | .188" | 1 | 3' x 5' | 120 mph | 315 mph | $2,032 | View |
| EC25 | 25' | 6" | .188" | 1 | 4' x 6' | 120 mph | 250 mph | $2,567 | View |
| EC30 | 30' | 6" | .188" | 1 | 5' x 8' | 120 mph | 211 mph | $2,873 | View |
| EC35 | 35' | 7" | .188" | 2 | 6' x 10' | 120 mph | 202 mph | $3,868 | View |
| EC40 | 40' | 8" | .188" | 2 | 8' x 12' | 120 mph | 203 mph | $4,964 | View |
| EC45 | 45' | 8" | .188" | 2 | 8' x 12' | 100 mph | 166 mph | $5,610 | View |
| EC50 | 50' | 10" | .188" | 3 | 10' x 15' | 115 mph | 185 mph | $7,599 | View |
| EC60 | 60' | 12" | .250" | 3 | 12' x 18' | 120 mph | 213 mph | $14,748 | View |
| EC70 | 70' | 12" | .250" | 3 | 15' x 25' | 105 mph | 169 mph | $16,609 | View |
| EC80 | 80' | 12" | .375" | 3 | 20' x 30' | 105 mph | 174 mph | $20,732 | View |
