VTR9-20B41 20' x 4" x .125" Vertical Wall Mount Series
External Single Revolving and Single Stationary - Rope Halyard
Disclaimer
- Satin is generally in stock – lead time 7-10 business days; If not in stock, may require 4 -6 week lead time.
- Anodized Finishes require 4 week lead time.
- Powder Finishes require 2-3 week lead time.
Description
The Vertical Wall Mount Series provides commercial-grade, one and two-piece solid aluminum Wall Mount designs in 3" to 6" butt diameters in standard heights of 12' to 38.5'. Flagpole heights listed are maximum heights for each shaft listed. All shafts can be modified to shorter heights upon request.
Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Single Revolving (4", 5", and 6" Butt Dia.) or Single Stationary (3" Butt Dia.) Truck Assembly with Aluminum Pulley
- Complete External Halyard Assembly
-
- Rope Halyard - 5/16" #10 Polyester
- Two (2) Solid Brass Swivel
Snap Hooks
- Two (2) Neoprene Snap Hook Covers
- 9" Cast Aluminum Cleat
- Anchorage by Others
NOTE: Cast Brackets Must Be Powder Coated. Due to the color variances between Anodized & Powder Coat finishes, it is recommended that Vertical Wall Mount Flagpoles be Powder Coated.
Technical Specifications
- Brand
- Concord American
- Model
- VTR9-20B41

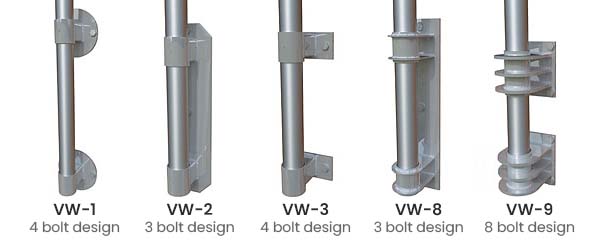

- Bracket
- VW-9
- Pole Shaft
- Tapered
- Truck Type
- Single Revolving
- Nominal Overall Length
- 20'
- Butt Dia.
- 4"
- Wall Thickness
- .125"
- Pole Sections
- 1
- Top Dia.
- 3"
Finish Options
Satin Aluminum Finish
Our aluminum flagpoles are crafted from Aluminum Alloy 6063, a marine-grade alloy known for its exceptional corrosion resistance. When exposed to air, aluminum naturally forms a protective layer of aluminum oxide, which defends against corrosion and maintains the flagpole's aesthetic appeal over its lifetime, even without additional finishing.
The satin aluminum finish is achieved through a multi-pass mechanical rotary sanding process using specialized abrasives. This meticulous method ensures a consistent, brushed aluminum appearance that has become the industry's preferred choice for a low-maintenance and durable flagpole finish.
Satin - SAT
Anodized Finish
Standard anodized finishes for flagpoles include clear, dark bronze, and black.
Clear Anodized - ACL
Dark Bronze Anodized - ADB
Black Anodized - ABL
Powder Coat Finish
Standard powder coat finishes include clear, bronzetone, black, and white.
For custom colors, provide an RAL color number or a color chip sample, and we can create the perfect powder coat color for your project.
Black Powder Coat - BLK
BronzeTone Powder Coat - BZT
White Powder Coat - WHT
Clear Powder Coat - CLR
