Outrigger Wall Mount Series
External Single Stationary - Rope Halyard
The Outrigger Single Stationary Series offers wall mounted flagpole options in lengths of 6' to 20'. A variety of Wall Mount design and angle options give project owners the ability to enhance any building facade with the customized look and beauty of aluminum flagpoles.
Standard Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Single Stationary Truck Assembly with Aluminum Pulley
- Complete External Halyard Assembly
- Rope Halyard – 5/16" #10 Polyester
- Two (2) Solid Brass Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- 9" Cast Aluminum Cleat
- 3/8" Eyebolt and Double Swivel Pulley
- Anchorage by Others
Outrigger Wall Mount Series
| Model | Bracket | Arm Angle | Pole Shaft | Nominal Overall Length | Butt Dia. | Wall Thickness | Price (Satin) |
|---|---|---|---|---|---|---|---|

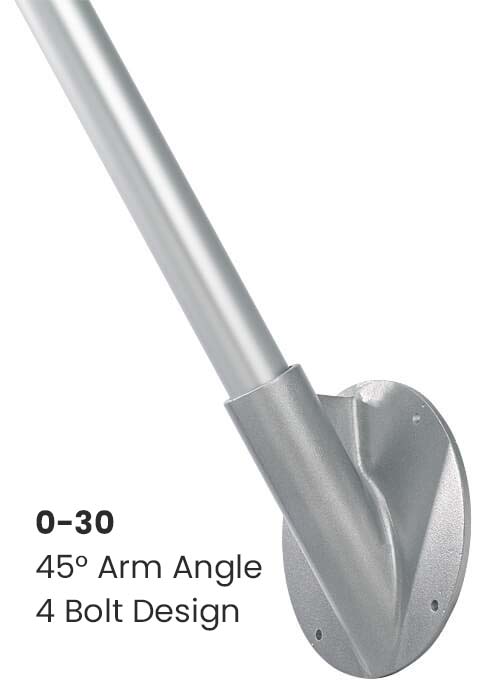

| O30-08B34 | O-30 | 45° | Straight | 8' | 3" | .125" | $1,043 |
| O30-10B34 | O-30 | 45° | Straight | 10' | 3" | .125" | $1,159 |
| O31-06B43 | O-31 | 30° | Tapered | 6' | 4" | .125" | $1,629 |
| O31-08B43 | O-31 | 30° | Tapered | 8' | 4" | .125" | $1,670 |
| O31-10B43 | O-31 | 30° | Tapered | 10' | 4" | .125" | $1,748 |
| O31-12C43 | O-31 | 30° | Tapered | 12' | 4" | .156" | $1,833 |
| O31-15D43 | O-31 | 30° | Tapered | 15' | 4" | .188" | $1,915 |
| O31-18D43 | O-31 | 30° | Tapered | 18' | 4" | .188" | $2,383 |
| O31-20D43 | O-31 | 30° | Tapered | 20' | 4" | .188" | $2,566 |
| O31-06B44 | O-31 | 45° | Tapered | 6' | 4" | .125" | $1,629 |
| O31-08B44 | O-31 | 45° | Tapered | 8' | 4" | .125" | $1,670 |
| O31-10B44 | O-31 | 45° | Tapered | 10' | 4" | .125" | $1,748 |
| O31-12C44 | O-31 | 45° | Tapered | 12' | 4" | .156" | $1,833 |
| O31-15D44 | O-31 | 45° | Tapered | 15' | 4" | .188" | $1,915 |
| O31-18D44 | O-31 | 45° | Tapered | 18' | 4" | .188" | $2,383 |
| O31-20D44 | O-31 | 45° | Tapered | 20' | 4" | .188" | $2,566 |
| O31-06B46 | O-31 | 60° | Tapered | 6' | 4" | .125" | $1,629 |
| O31-08B46 | O-31 | 60° | Tapered | 8' | 4" | .125" | $1,670 |
| O31-10B46 | O-31 | 60° | Tapered | 10' | 4" | .125" | $1,748 |
| O31-12C46 | O-31 | 60° | Tapered | 12' | 4" | .156" | $1,833 |
| O31-15D46 | O-31 | 60° | Tapered | 15' | 4" | .188" | $1,915 |
| O31-18D46 | O-31 | 60° | Tapered | 18' | 4" | .188" | $2,383 |
| O31-20D46 | O-31 | 60° | Tapered | 20' | 4" | .188" | $2,566 |
| O32-06B44 | O-32 | 45° | Tapered | 6' | 4" | .125" | $2,056 |
| O32-08B44 | O-32 | 45° | Tapered | 8' | 4" | .125" | $2,181 |
| O32-10B44 | O-32 | 45° | Tapered | 10' | 4" | .125" | $2,331 |
| O32-12C44 | O-32 | 45° | Tapered | 12' | 4" | .156" | $2,454 |
| O32-15D44 | O-32 | 45° | Tapered | 15' | 4" | .188" | $2,808 |
| O32-18D44 | O-32 | 45° | Tapered | 18' | 4" | .188" | $2,933 |
| O32-20D44 | O-32 | 45° | Tapered | 20' | 4" | .188" | $3,034 |
Finish Options
Satin Aluminum Finish
Our aluminum flagpoles are crafted from Aluminum Alloy 6063, a marine-grade alloy known for its exceptional corrosion resistance. When exposed to air, aluminum naturally forms a protective layer of aluminum oxide, which defends against corrosion and maintains the flagpole's aesthetic appeal over its lifetime, even without additional finishing.
The satin aluminum finish is achieved through a multi-pass mechanical rotary sanding process using specialized abrasives. This meticulous method ensures a consistent, brushed aluminum appearance that has become the industry's preferred choice for a low-maintenance and durable flagpole finish.
Satin - SAT
Anodized Finish
Standard anodized finishes for flagpoles include clear, dark bronze, and black.
Clear Anodized - ACL
Dark Bronze Anodized - ADB
Black Anodized - ABL
Powder Coat Finish
Standard powder coat finishes include clear, bronzetone, black, and white.
For custom colors, provide an RAL color number or a color chip sample, and we can create the perfect powder coat color for your project.
Black Powder Coat - BLK
BronzeTone Powder Coat - BZT
White Powder Coat - WHT
Clear Powder Coat - CLR
