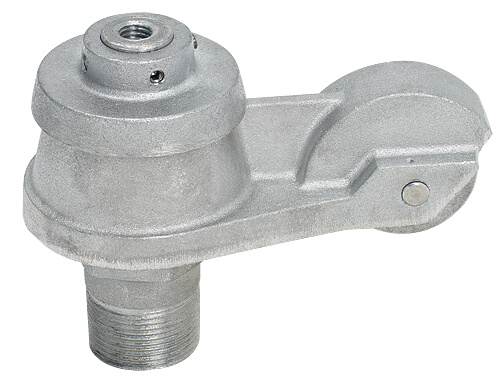

Heavy-Duty Single Revolving Truck

Image(s)
Description
  • Heavyweight Cast Aluminum Body and Components.
  • Single Aluminum Pulley with Stainless Steel Axle.
  • SEALED Upper and Lower Stainless Steel Ball Bearing Assemblies.
  • 1-1/4" NPT Spindle.
  • 1/2"-13NC Top Drilling (5/8"-11NC Available).
  • Recommended Halyard Diameter – 3/8".

External Flagpole Trucks

External Flagpole Trucks sit at the top of the flagpole, providing an exposed pulley and rope system for raising and lowering the flag.

All Trucks are designed to accept Balls, Eagles and Finials. Standard Spindle Threading is 1-1/4" NPT (1" NPT and 1-1/2" NPT Spindles available upon request).

Powder Coat Finish Options

BZT = Powder Coat – BronzeTone
BLK = Powder Coat – Black
WHT = Powder Coat – White
CLR = Powder Coat – Clear

External Halyard Flagpole Truck Example
External Stationary Truck - Cap Design Example
External Stationary
Cap Design

Cap Design Trucks install over the top of the flagpole and are attached with anchoring set screws or bolts.

Stationary Trucks are fixed and will not rotate.

External Single Revolving Truck - Spindle Design Example
External Single Revolving
Spindle Design

Spindle Design Trucks incorporate a threaded spindle which is installed into a female fitting welded into the top of the flagpole.

Revolving Trucks rotate the flag with the wind.

External Double Revolving Truck - Spindle Design Example
External Double Revolving
Spindle Design
